제품 상세 정보:
|
| 제품: | Atex Zone 2 디젤 발전기 세트 가스전 및 유전 | 공장 테스트 리포트: | 제공 |
|---|---|---|---|
| 프라임 파워: | 250kVA/200kW | 재료: | 스테인레스 스틸 |
| 냉각 방식: | 폐쇄형 수냉식 | 주유 방식: | 윤활됩니다 |
| 위험 지역: | 구역 2/구역 2 안전/구역 1 | 면적에 사용: | 해양 및 육상 |
| 서비스: | 비디오 기술 지원 | 색상: | 빨간색/흰색/사용자 정의 |
| 강조하다: | 250KVA ATEX explosion-proof diesel generator,Zone 2 Zone 1 diesel genset,50Hz 60Hz explosion-proof generator set |
||

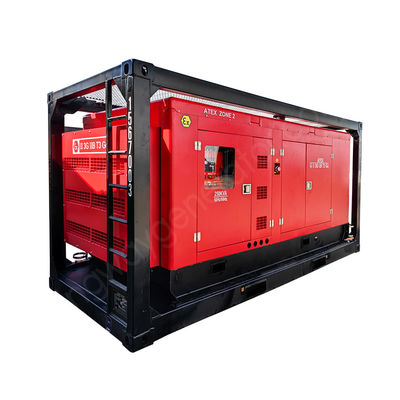

Kingway ATEX Certified Zone 2 Ex Proof equipment is for applications in Hazardous Area ( Zone 2 or Zone 1). The genset products use Cumins or Perkins engine to make the Zone 2 Conversion mounted in the DNV Standards certificate 2.7-1 lifting frame.
Quality & Compliance:
The Kingway Ex product follow the ATEX standard EN 60079 series and EN 1834 series. The equipment will give a
BV BV will do the third party inspection, and will issue the BV third party inspection report, and make the following summary: The equipment is Cmpliant to EN60079 & related ATEX Standards and ATEX Directive 2014/34/EU, and is suitable to be used in Zone 2 IIB T3 Hazardous Area.
| Product name | ATEX Zone 2 Diesel Generator Set |
| Applicable | Hazardous area zone 1/zone 2 |
| Power/Capacity | 250KVA |
| Certification | ATEX, DNV, BV, ROHS |
| Frequency | 50HZ, 60HZ |
| Speed | 1500RPM, 1800RPM |
| Engine brand | Cumins/Perkins |
| Controller | Deepsea/ComAP |
| Installation type | Fixed or portable |
| Starting System | Electric/Hydraulic/Spring Start |
| Operating temperature | -25°C to +60°C |
